USB Universal Serial Bus

USB Device
SCIOPTA USB Device allows to connect a SCIOPTA target system via an USB bus system to a computer with USB host functionality.

Device classes include USB mass storage device class used for flash drives, portable hard drives, memory card readers, digital cameras, digital audio players etc. and USB communications device class used for modems, network cards, ISDN connections, Fax.



Please ask for availability of other device classes.


USB Host Stack

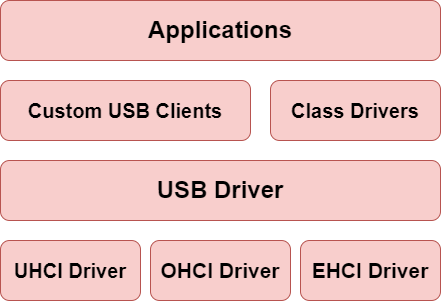

The SCIOPTA USB host stack is specifically designed for embedded systems. It contains the core protocol stack, the required host controller device drivers, a low-level communication API and high-level class drivers.

Host Controllers
All major USB 1.1 and 2.0 host controller such as UHCI, OHCI and EHCI types are supported. These controller types are always supported, regardless of their respective vendor or model.

Transfer Type
All USB data transfer types/protocols (bulk, interrupt and isochronous) can be used to support both high throughput and real-time oriented devices.

Data Transfer
Low, full, and high speed data transfer can be used. Up to 12 Mb/s on USB 1.1 and 480 Mb/s on USB 2.0 buses are supported.

Hot Plugging
The SCIOPTA USB host stack automatically detects devices and/or hubs being added and removed from the bus and can call application supplied callbacks for each event of such a type. The application can then decide whether to enable and operate the device or not. The host stack supplies functions to query a device’s name, vendor, class, descriptors, interfaces, endpoints, etc.

Host Stack Class Drivers
SCIOPTA USB host stack provides high-level class drivers for keyboards, mice, touch screens, printers, mass storage devices (disks, memory sticks, floppies, digital cameras, CD-ROMs, DVDs, etc.), and ASIX USB-Ethernet bridge devices.

A hub class driver is integrated in the core USB protocol stack. Class drivers allow applications to use a device without being concerned about details, such as the transfer type and speed to use, etc.

The mass storage device class driver requires a file system such as SCIOPTA SFATFS.

The USB-Ethernet bridge drivers need the SCIOPTA IPS network stack.
